Lead time for cut & edge orders: 5–7 working days*
*Subject to availability

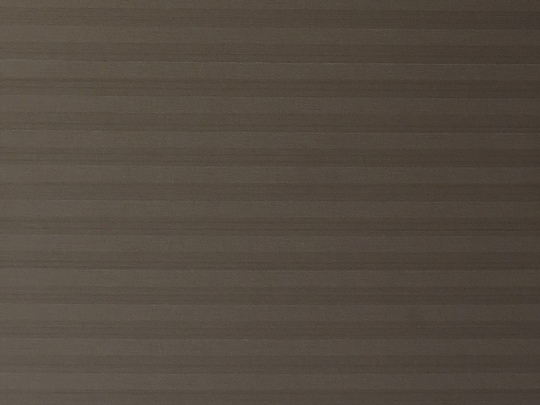

Xylo Surfaces LB18-RIGALINEAR Ombra Stria is an 18 mm melamine-faced chipboard (MFC) panel with a matt-satin finish and abstract texture. Stock sheet size: 2800 × 2070 mm.
The grain runs along the sheet length; keep this direction consistent across adjoining doors and panels.
Choose a full sheet or enter your finished panel dimensions and quantities in the cutting list. Select edging for the exposed edges you want finished. Review your calculated cutting-list total before adding to your basket.
For 36 mm bonded panels, select 36 mm bonded in your cutting list, enter your finished panel sizes and quantities, and choose any fitted edging. Two matching 18 mm boards are automatically allowed for each finished panel. Bonding and selected 42 mm wide edging are included in your calculated total, ready to order online.
Compare Xylo Surfaces decors · Explore CNC cutting and drilling.
Use the VAT switch at the top to view prices including or excluding VAT.


Choose a thickness, then enter each panel’s finished length and width in millimetres, followed by the quantity. Check grain direction and select the edges you need finished before adding your list to the basket. For bonded 36 mm panels, the machining editor shows the 18 mm base-board thickness; your cutting-list selection and order summary show the finished 36 mm thickness.
Use the CSV template below to import a cutting list for this board. Keep the headings, replace the example rows and check each imported panel before calculating. For an email quotation: Download our Excel cutting list, then email it with any drawings to info@cutmyboards.co.uk. See our ordering guide for help with specifications and pricing.
Delivery cost unclear? Keep your cutting list open and request a quote in a new tab. Include your delivery postcode and Job ID from the basket or order summary. If no Job ID is available, include the board, thickness, panel sizes and quantities.
Rotation allowed lets the cutting layout turn a panel by 90° to use the sheet efficiently. Use this only when the visible direction does not matter.
For woodgrain or a directional finish, use the rotation control and read the direction/status shown beneath that panel. Choose the orientation that runs along your intended length or width and keep it fixed. Check the product’s grain description and the calculated layout before ordering.
Example: for a 2041 × 330 mm door with grain running from top to bottom, the grain must follow the 2041 mm dimension. Rotation does not arrange continuous grain matching between separate doors; ask us to check a labelled drawing if that is required.
Edge = NONE: a hole drilled into the broad face of the panel. X and Y locate the hole centre on the drawing; they are not drilling depth. In the initial face view, X runs across from W1 and Y runs up from L1, with the origin at corner A.
Edge = SIDE L1, L2, W1 or W2: an edge-boring operation into the selected narrow edge. In the initial drawing L1 is the bottom, L2 the top, W1 the left and W2 the right. Always use the labels on the current preview.
For edge boring, do not use Y as the distance to drill into the board. Send a dimensioned drawing showing the entry edge, hole position across the panel thickness, diameter and drilling depth if you are unsure how to enter it.
Hole depth is how far the drill enters the material. It is separate from X/Y position and hole diameter. If no Depth field is displayed, do not assume a blind-hole depth or a through-hole: ask us to confirm the machining specification before ordering.
Hinge holes creates a hole pattern along a selected edge. Enter the pattern position, hinge length, outer spacing, distance from edge, diameter and number of holes to match your fitting drawing, then check the preview. This option does not automatically identify your hinge or guarantee a standard 35 mm concealed-hinge cup.
Include the hinge make/model or fitting drawing, cup diameter and depth, fixing-hole positions, opening hand and panel thickness. For bonded 36 mm panels, tell us the finished thickness as the editor displays the 18 mm base board.
Add your cuts below. Units are mm.
This product is priced by full sheet.
| Banding total | £0.00 |
| Machining total | £0.00 |
Your cut-to-size price is based on the sheets required for the parts in your cutting list. The full-sheet price and the sheet price with cutting are shown separately above. Check the product’s cutting allowance and review all selected edging, machining and bonding charges, VAT and delivery in the complete total. A small order may still require a full sheet.
Dimensions: enter finished length and width in millimetres and check the quantity of each part. Grain: choose the direction you want visible on woodgrain and directional finishes. Edging: select the exposed edges you want finished. Check the exact decor code, core and thickness, then review any machining details.
If colour or texture is critical, use the sample option above before placing your main order. Ask us about anything you are unsure of.
Review the delivery options and charge for your destination during ordering. Collection from Hayes is available by arrangement. For a particular deadline, contact us before ordering with the board, quantities, delivery postcode and required date so we can check availability and lead time.
Need help with rotation or drilling? Read the grain, X/Y, edge and hinge-hole guide.
X and Y are position fields, not drill depth. If no Depth field appears, ask us to confirm the depth before ordering. Hinge holes must match your fitting drawing.
Request a delivery quote with your postcode and Job ID from the basket or order summary. The form opens in a new tab.
Use the row’s remove control to delete a panel. For help, email info@cutmyboards.co.uk with your dimensions or cutting list.
